Blender is one of the world's most popular free 3d applications. Getting around Blender can be a bit tricky. This tutorial explains how to move the camera and go to component modes (verticies, faces, edges).

Blender

When you first open Blender, you're looking through an orthographic camera from the top. If you come from a 3d background, you know you can't rotate around. To get to the user camera, go to view>user.

click to enlarge

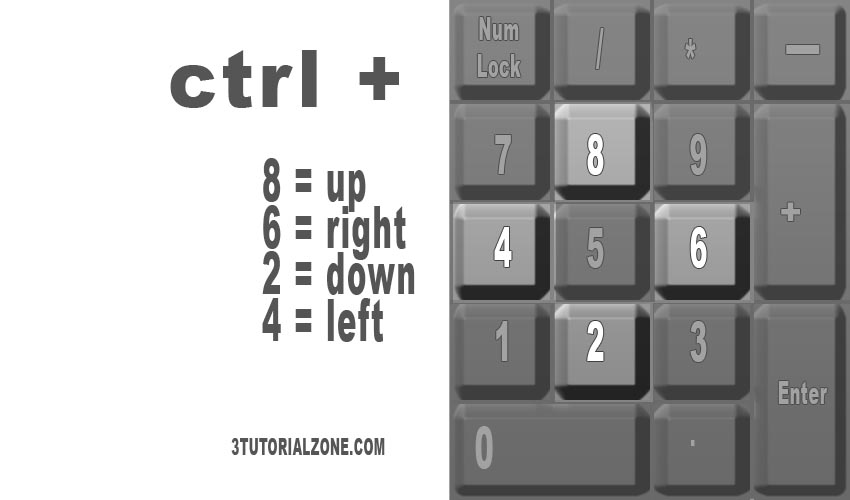

Hold the center mouse button and move your mouse. Now you can rotate around your scene. Now, to pan, hit ctrl+8 to pan the camera up, ctrl+2 to pan the camera down, ctrl+4 to go left, and ctrl+6 to go right. Remember, all your numbers are in the numbers pad on your keyboard.
(note: do not use ctrl and you can rotate)

click to enlarge

Now let's de-select the object. Hit A on your keyboard. This will de-select all the selected objects in the scene. To select the object, right mouse button on it.

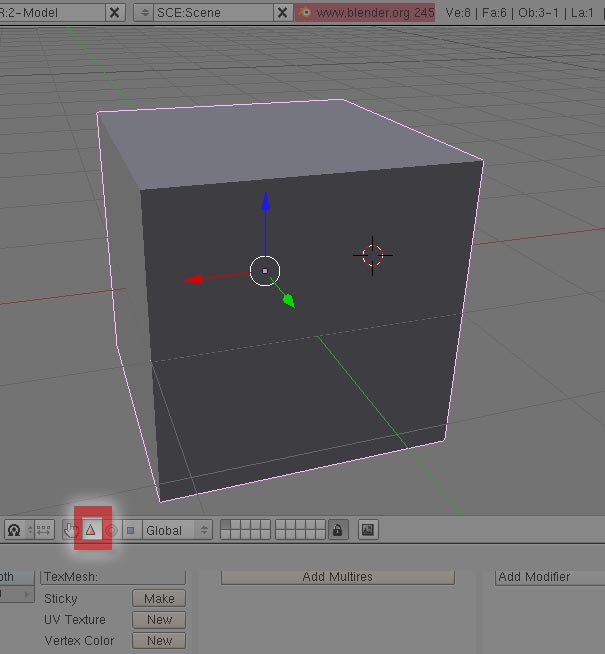

To move an object, use the move tool.

click to enlarge

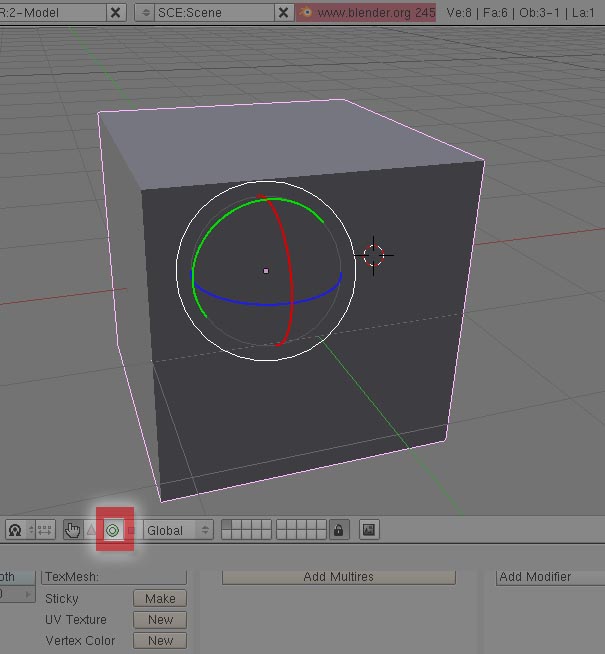

To rotate an object, use the rotate tool.

click to enlarge

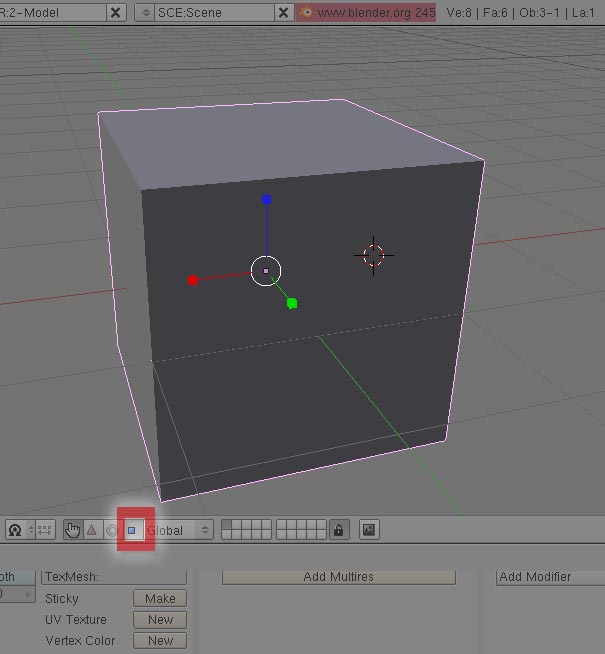

To scale an object use the scale tool.

click to enlarge

To undo any action, hit ctrl+z.

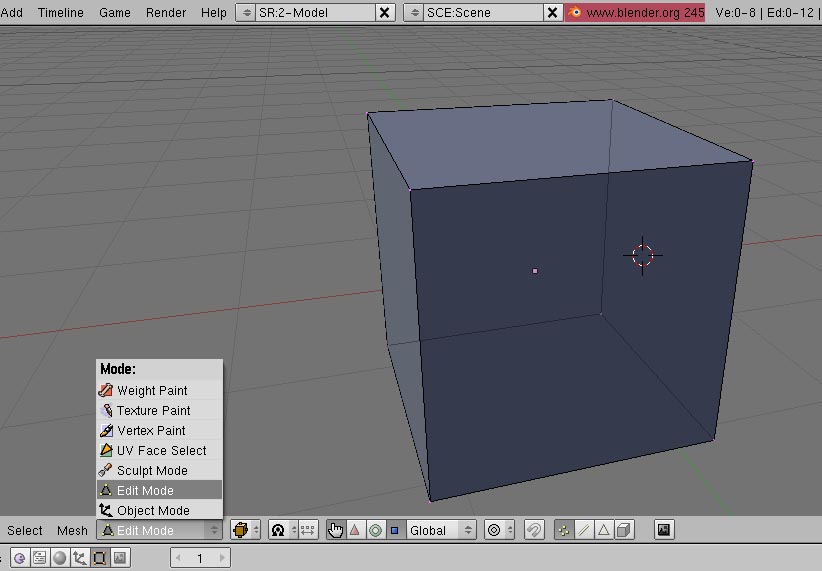

Now let's get into component mode. Set the mode from object to edit and then hit A on the keyboard to de-select all the vertices.

click to enlarge

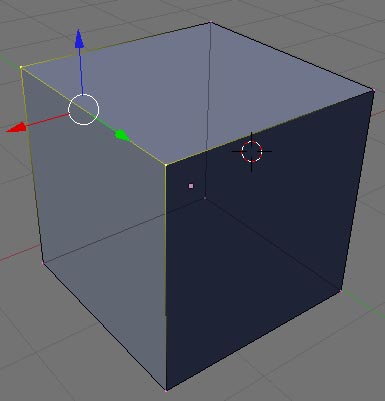

It is slow to go around the model, moving each vertex individually. If you want to move two or more at the same time, right click on the first vertex, then shift+right click on the second, third, etc.

click to enlarge

Of course there';s a faster way of doing this. Hit B on your keyboard and it will let you make a square around all the vertices you want to select. Any vertices inside the square will be selected.

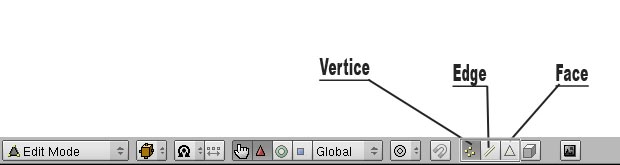

To change the type of component mode, use the image below to explain.

click to enlarge

Now let's say you want to go to the side view to do some editing. The problem with this is it is no longer an orthographic camera anymore. This will cause problems. To toggle between orthographic and perspective, hit 5 on the number pad.
There are the basics for getting around Blender.
