Layer Style Effects

Share |

This tutorial will cover how to use layer style effects in Adobe Photoshop.

Set-up

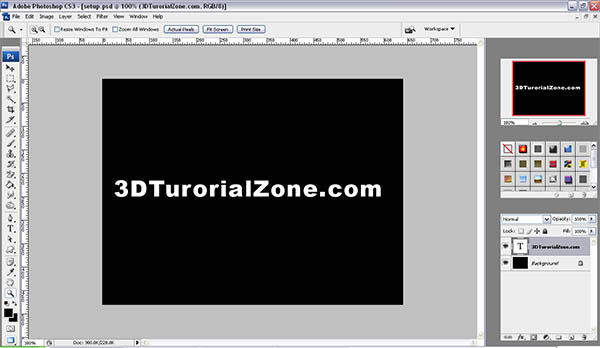

Step one - Open Adobe Photoshop, create a new document, fill in the background black and add some text.

click to enlarge

Or download this set-up file.

Accessing The Layer Styles

There are a couple of ways to do this.

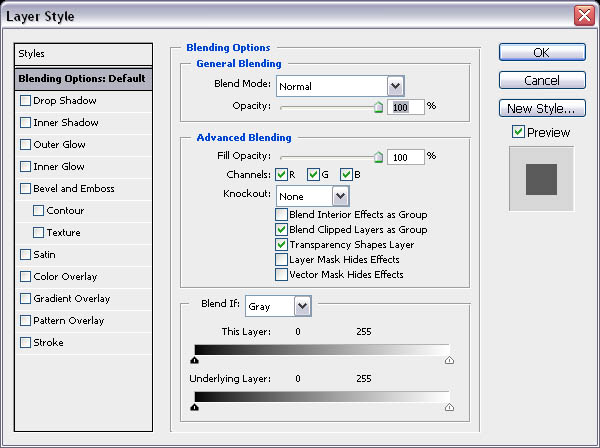

1. Right click on the layer and go to blending options.

2. Go to layer>layer style>blending options...

click to enlarge

All the features of the layer styles are pretty much self-explaining. Here are some tips to make things look better.

1 - When it says Use Global Lighting, that means use the same light angle for the entire document. If you uncheck this, it will only be for the specific layer.

2 - To remove the original layer's color, go to the blending options and set the fill to 0%.

3 - Layer styles are not affected by the color of the original layer. They're only affected by the transparency. Example: black text on a white background won't work, but if the black text is on a seperate layer with transparency, it will work.

4 - If you intend to import the PSD file into Maya or a similar application, the program may not be able to read the layer styles.

Example 1

In this part we'll cover how to make a simple chrome text effect.

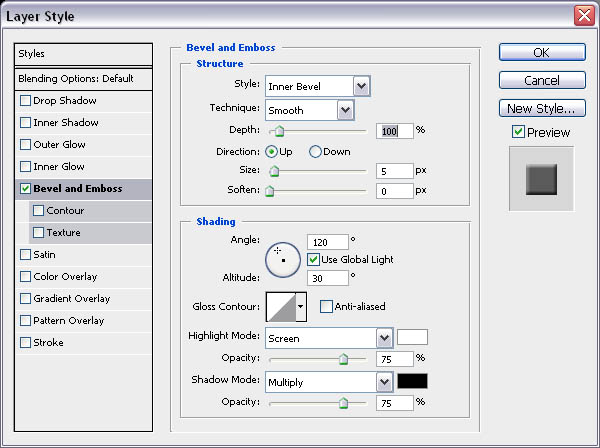

Step one - Check bevel and emboss.

click to enlarge

Step two - Go down to shading and check anti-aliased (AA).

Step three - Double click on the gloss contour.

click to enlarge

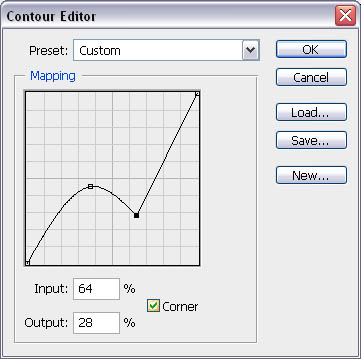

Step four - In the contour editor window, we'll change how the gloss falls on the text.

Step five - To change the curve, click on the line to add an edit point which later you can move. To make a hard corner, check corner after selecting an edit point.

click to enlarge

Create this profile to get the chrome result.

click to enlarge

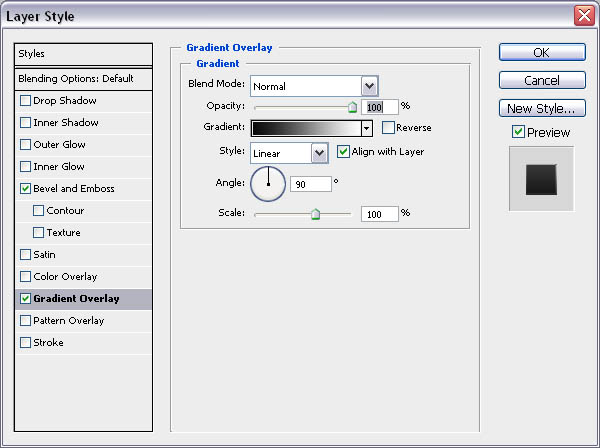

Step six - Check gradient.

click to enlarge

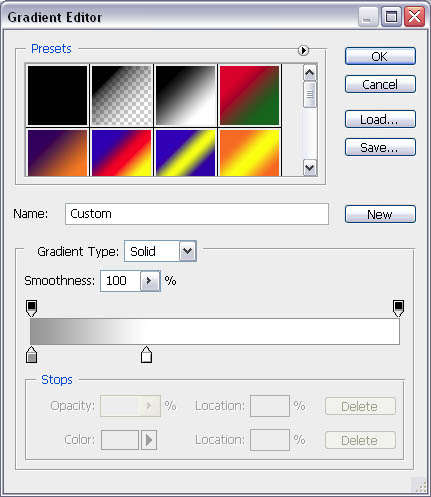

Step seven - Double click on the gradient to open the gradient editor.

Create a gradient like the one in the image below.

click to enlarge

Now you're done.

click to enlarge

Example 2

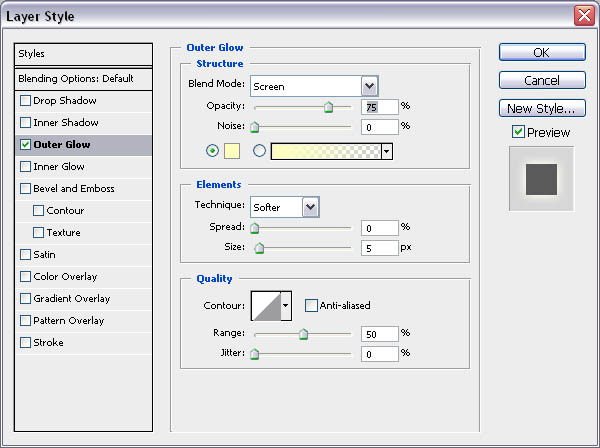

Step one - Check outer glow.

click to enlarge

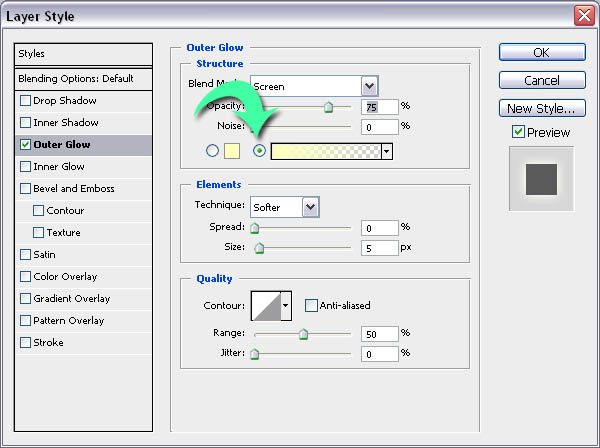

Step two - Set the structure color from solid color to gradient.

click to enlarge

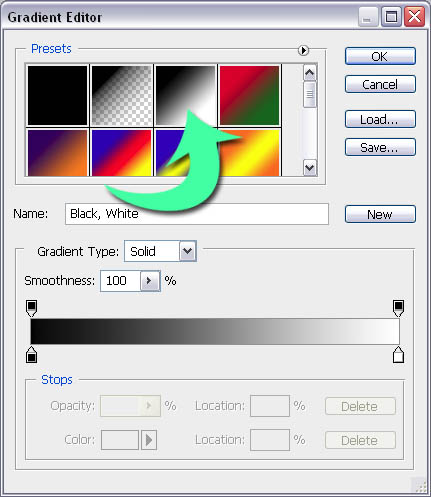

Step three - Double click on the gradient and use the simple black to white gradient preset.

click to enlarge

Step four - Set the blending mode to normal. Set the spread to 27, and size to 9.

Step five - Check gradient map.

Step six - Create the same gradient map that we created for the previous example.

click to enlarge

Done.

click to enlarge

Saving A Layer Style

You can save a layer style so you can use it later. To save a layer style, click the "new style..." button in the layer style window.

Set the name to something that reflects what the layers results are.

To assign a preset layer style to a new layer, simply use the style's palette on the interface. Your saved layer styles will appear here. This will be here even after you restart Adobe Photoshop.

click to enlarge

Copy & Pasting Layer Styles

You can copy and paste a layer style from layer to layer or document to document.

Step one - Right click on the layer and go to copy layer style.

Step two - Right click on the layer you want to assign the layer to and hit paste layer style.

Hiding And Removing Layer Styles

To hide a layer style, click on the eye icon beside it listed in the layers editor beneath the layer.

click to enlarge

To hide all the layer styles in the document, go to layer>layer style>hide all effects. To redisplay them, go back and hit show all effects.

To remove a layer style from a layer, right click on the layer and click clear layer style.

To remove a layer style but keep the result it creates, create a new empty layer beside the layer with the layer style. Select both layers and go to layer>merge layers. Note: You will not be able to edit the layer style after this.

Conclusion

I hope this tutorial got you up to speed with layer styles in Adobe Photoshop.
