Creating A Paint Effects Tree

Share |

This tutorial will teach you how to create a tree using Maya's paint effects. This tutorial has been written for intermediate Maya users.

Set-up

Go to the rendering menu set.

Introduction

First I want to say this tutorial will be covering strictly how to make trees in paint effects. I'll only be teaching the procedure and attributes needed to create a tree; this is technically not a cover-all paint effects tutorial. With that said, you should first start off with getting some reference of the tree you want to make. Google image search is a great help here.

Link

Making A Standard Tree

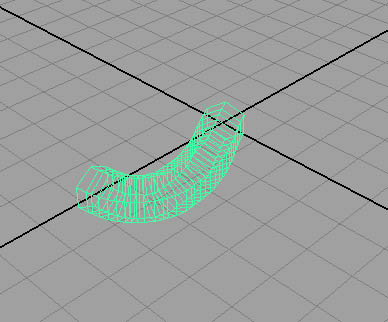

Step one - Go to paint effects>paint effects tool. Now draw one stroke in the scene.

click to enlarge

Step two - Select your paint effects stroke and open the attributes editor (window>attributes editor).

Step three - Go to the brush tab.

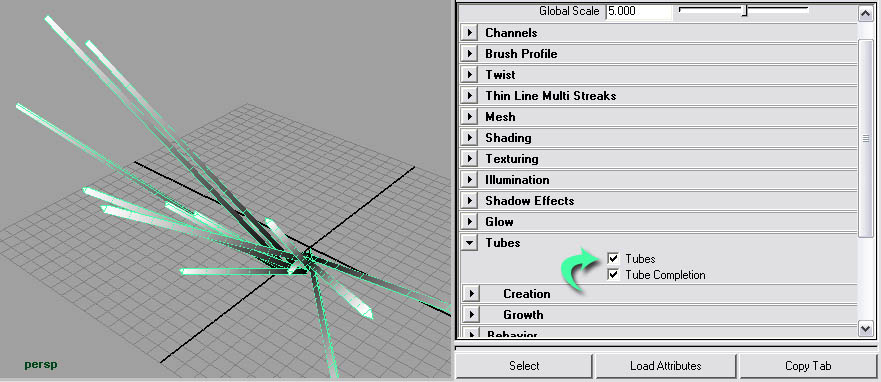

Step four - Click on the tag tubes. Check tubes.

click to enlarge

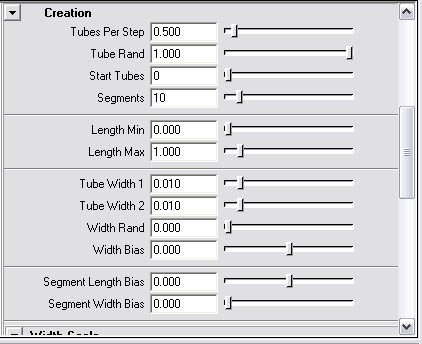

Step five - Now go to the creation tag.

click to enlarge

First we need to get rid of the extra tubes.Set the tubes per step to 0.001. This will force paint effects to only create one tube. Now set the tube rand to 0. Now we've got one tube; this will be our trunk.

click to enlarge

Increase the segments attribute to something like 28. This will break up the tube into more segments, allowing it to bend smoother. Now the tree's pretty short, so go to the length attributes.

click to enlarge

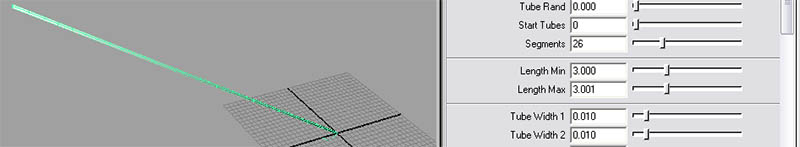

The reason there's a minimum and maximum length is because normally it will randomly select the length from the range between those two values for each tube. So, by setting the attributes' values summarily (example: 2 and 3), it won't have much of a range to select from, giving us more control. The minimum should never be larger than the maximum. So, in our case, set the minimum to 3 and the maximum to 3.001.

click to enlarge

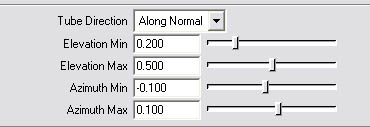

Now to fix that leaning issue. Roll down and look at the elevation minimum and elevation maximum attributes.

click to enlarge

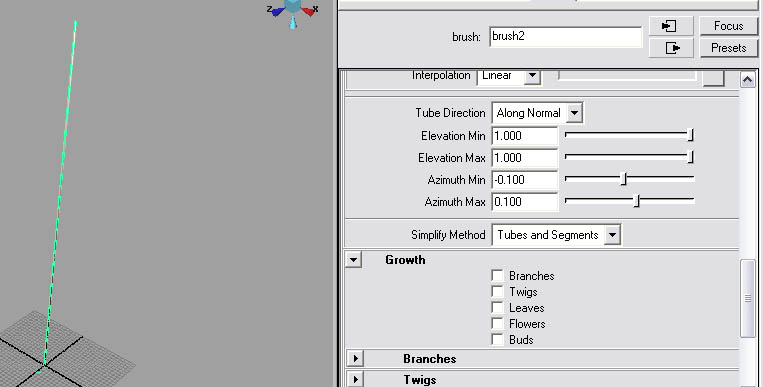

To get this tree standing straight up and down, set both attributes to 1.

click to enlarge

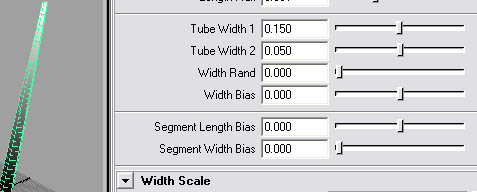

Our tree is way too skinny, so go to the tube width 1 and tube width 2. Tube width 1 is the width of the base of the tree. Width 2 is the width of the top. Set ours to 0.150 and 0.050.

click to enlarge

Now that our trunk's done, we'll do our branches, twigs, and leaves.

Branches

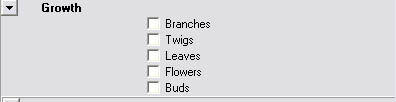

First roll down to the growth tag.

click to enlarge

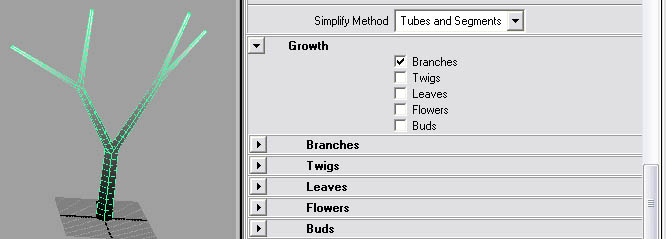

Check branches.

click to enlarge

As you can see, this immediately splits up the trunk into branches. Now go to the tag branches, and we'll work from there.

click to enlarge

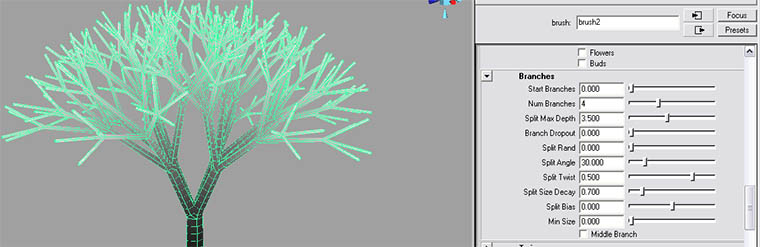

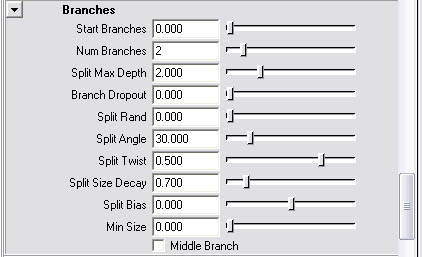

Set the number of branches (num branches) to 4. This is good for most trees, but our tree's still sparse on branches. So increase the split max depth attribute to 3.5.

click to enlarge

This breaks up our branches into a more realistic density by adding more places where branches can split.

The branch dropout attribute lets you randomly remove some of the branches. We'll leave this at 0.

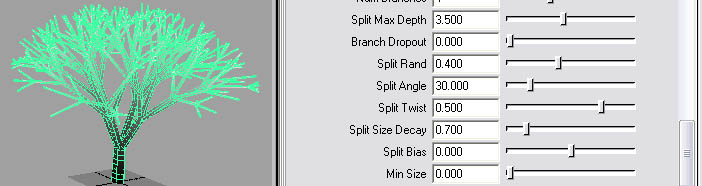

The next two attributes we're going to change are split rand and split angle. Split rand randomizes the location of the splits on the branches. Set ours to 0.400. Now the split angle defines the angle that the tree branches will be positioned at. The higher the angle, the more they will appear to bend down. The lesser the angle, the more they will appear to stretch up. Set ours to 30.

click to enlarge

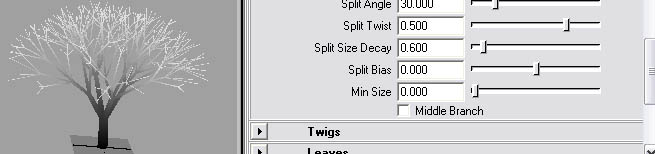

Split size decay allows you to set how much the branches will thin as they get father away from the trunk. We're setting ours to 0.600.

click to enlarge

Split bias can create some neat effects. By increasing the value it will split the branches higher up on the branch. Decreasing it will do the opposite.

Minimum size will basically set the minimum size for branches and will delete all the branches smaller than the value.

Twigs

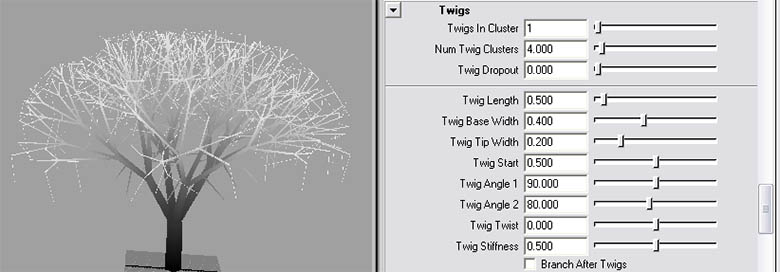

Now go back up to the growth tag and check twigs. Now go down to the twigs tag.

click to enlarge

First let's fix the length of these twigs. Use the length attribute and set it to 0.250.

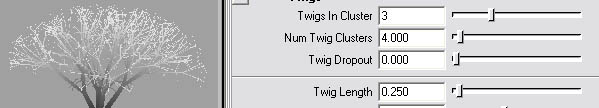

Now we want to increase the number of twigs, so set the "twigs in cluster" to 3.

click to enlarge

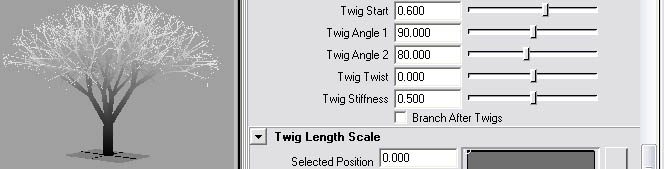

Now let's use the twig start attribute. Increasing it will push the place where the twigs start up the branch. We want to set ours to 0.600.

click to enlarge

The twig angle 1 and 2 attributes allow you to change the angle of the twigs at the bottom of the branch and the top of the branch independently. In our case, we want to set twig angle 1 to 30 and twig angle 2 to 50. Our twigs will spread out more at the tips.

click to enlarge

Right now, all our twigs sit on the same side of the branch. We'll fix this using the twig twist attribute. Set it to 0.500; this will cause out twigs' position to "twist"

click to enlarge

Now it's starting to look like a tree.

Leaves

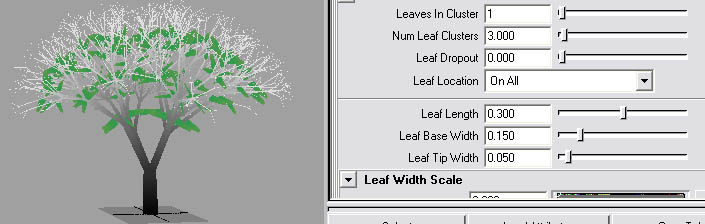

Go back to growth and check leaves. Roll down to the tag leaves.

click to enlarge

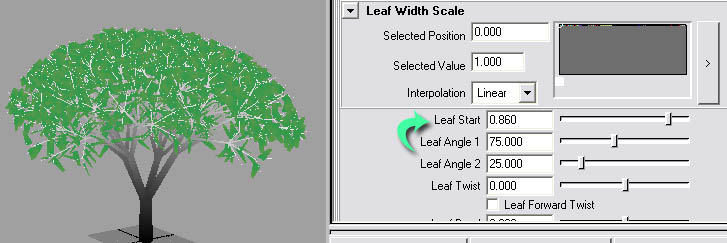

First we need to change the leaf start attribute. We want to set that to 0.860. This will push the leaves off the low branches.

click to enlarge

Now our leaves are way too big for the tree. So roll up to leaf length; set it to 0.100. Now set the leaf base width and leaf tip width to 0.100.

click to enlarge

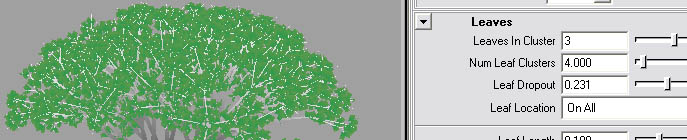

Now we can start setting up the amount of leaves we want on the trees. First we want to set the leaves in cluster to 3. Set the number of leaf clusters (num leaf clusters) to 4. Lastly, we want to set the leaf dropout to 0.231.

click to enlarge

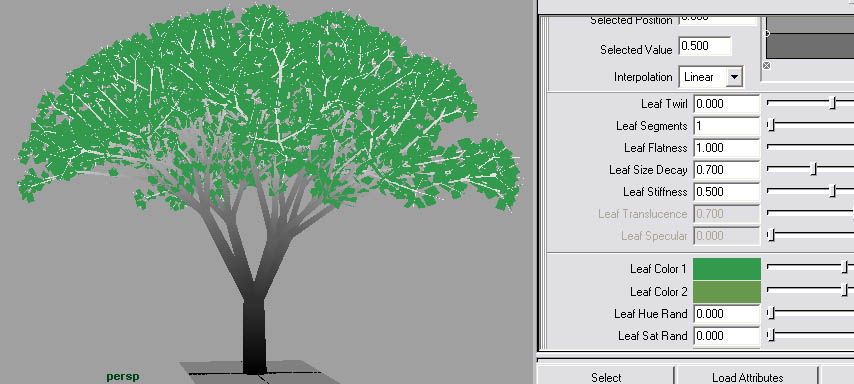

We're going to be using a picture of a leaf for our leaf texture. We're not going to be trying to shape the leaves using the leaf profile options. So we want to set our segments to 1.

click to enlarge

Texturing

Now onto texture. You'll need two images - one for bark, and one for leaves. The bark image doesn't need to be really all that specific; should be tileable. Now the leaf image needs to be a bit more specific. It needs to be a .Tiff image with transparency, so only the leaf itself will be rendered and the excess will be removed.

A good place to find tree textures is 2textured.com.

For leaves, go here: http://www.2textured.com/main.php?g2_itemId=1169

For bark, go here: http://www.2textured.com/main.php?g2_itemId=1653

We'll do leaves first.

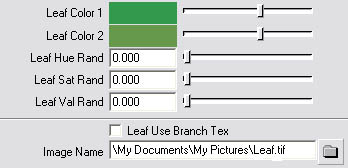

Step one - Uncheck leaf use branch tex (unless you want your leaves looking like your bark).

Step two - Click on the folder icon and load your leaf image.

click to enlarge

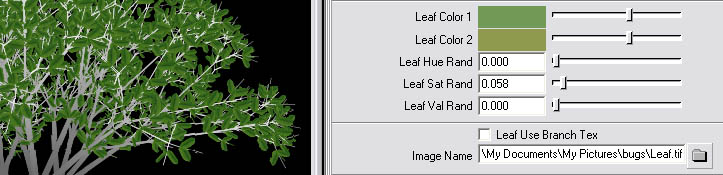

The two attributes leaf color 1 and leaf color 2 let you set the color of the leaves. The three attributes below let you randomize the color. For best results, only use leaf sat rand.

click to enlarge

Now for the bark.

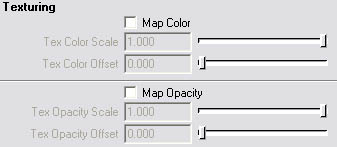

Step one - Get out of the tube tags and go to texturing.

click to enlarge

Step two - Check map color. Now roll down to texture type.

click to enlarge

Step three - Set the texture type to file.

Step four - Roll down to the image name attribute. Click on the folder icon and load the bark texture.

click to enlarge

The two attributes you'll be tweaking the most are repeat U and V. Repeat U sets how many times the texture will be repeated down the branch. Repeat V will set how many times the texture will be repeated around the branch.

Lighting

A quick way to light paint effects is to roll down to illumination and check illuminated.

click to enlarge

Addition Notes

- Don't make your leaves too large; this will make your tree look fake.

- If your graphics card has trouble drawing the tree, go to the strokeShapeBrush tab and reduce the display quality. It will still render the same, but your viewport won't have to draw as many polygons. If that doesn't help, un-check draw as mesh. This will draw the tree as curves, and they're the easiest on the graphics card.

- Paint effects can't be rendered with Mental Ray. But paint effects can be converted to polygons. Select your paint effects and go to modify>convert>paint effects to polygons.

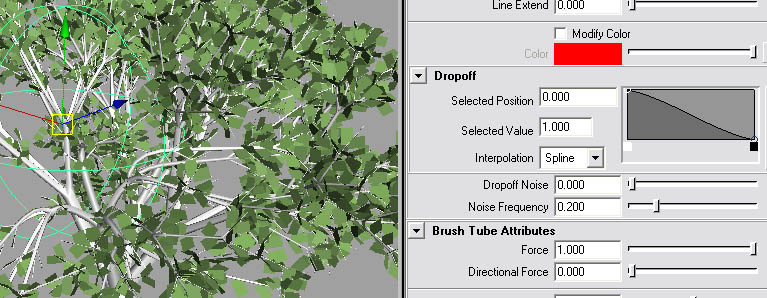

- If you need to manually change the paint effects' position, select the paint effects and go to paint effects>create modifier. With the modifier selected, open the attributes editor and set the force to 1.

click to enlarge

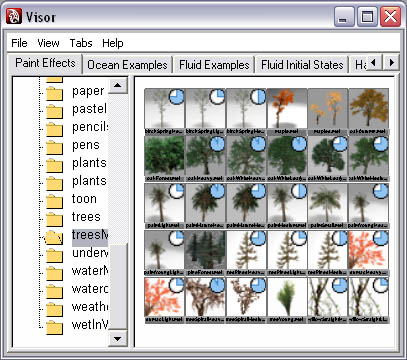

- You can see and use pre-defined paint effects brushes for trees by going to window>general editors>visor. Now roll down to trees and treesMesh.

click to enlarge

Conclusion

I hope this tutorial has taught you how to create a tree in paint effects. There are many other variations you could do to make different trees.

Good luck.
